Complete Timber Joist Connector Kit, used to join a new section of joist to another that has:
Each Timber Joist Connector Set consists of the following:
| Weight | N/A |
|---|---|
| W | M10, M12 |
| L | 80mm, 115mm, 125mm, 180mm, 230mm |

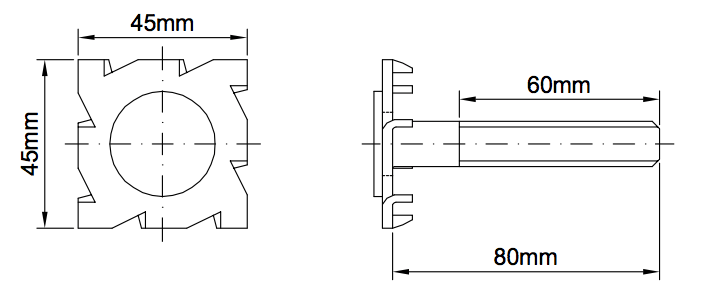

80mm
x M10
x M12
JB80M10BZP
JB80M12BZP
Used to connect a timber member into the web of a structural steel member.
115mm
x M10
x M12
JB115M10BZP
JB115M12BZP
Used to connect two timber members together.

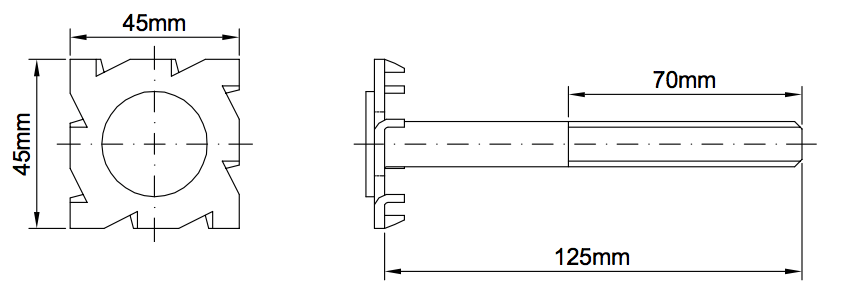

125mm
x M10
x M12
JB125M10BZP
JB125M12BZP
Used to connect two timber members to each side of the web of a structure steel member.
180mm
x M10
x M12
JB180M10BZP
JB180M12BZP
Used to connect three timber members together. Furthermore, there is sufficient scope to incorporate a steel structural member.

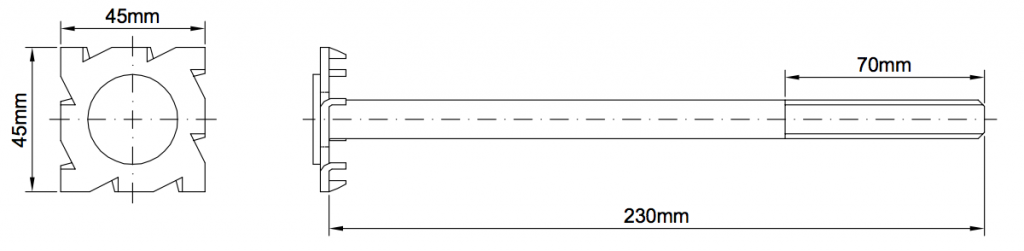

230mm
x M10
x M12
JB230M10BZP
JB230M12BZP
Used to connect four timber members together. Furthermore, there is sufficient scope to incorporate a steel structural member.
